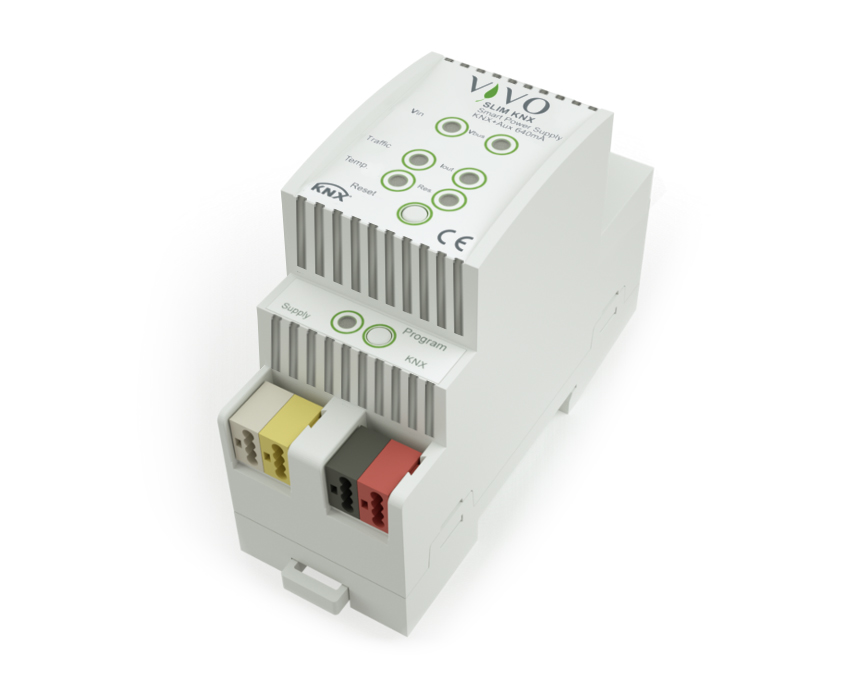

Slim KNX

Smart Power Supply 640 mA

Product Code: K.SLI.01A.20N.EU

Description:

The Vivo® power supply Slim KNX is a KNX device for rail mounting which produces and monitors the 30 Vdc voltage required to operate the bus system. The Slim KNX version device has a 30 Vdc additional output, which can be used as a SELV (safety extra low voltage) auxiliary power for bus devices. The device has an integrated choke which provides the decoupling between the power supply and the information on the bus line. On a KNX bus line can be connected up to 64 KNX bus devices. The output is protected from overload and short circuit. The total current absorbed by the two outputs (KNX bus and auxiliary) cannot exceed 640 mA. The device can support short interruptions of the mains voltage (max 200 ms).

Characteristics:

· 30 Vdc SELV power supply for a KNX bus line with max 64 connected devices

· Auxiliary power supply 30 Vdc

· Reset of the connected bus line with a dedicated pushbutton
