Gemma KNX Series

Description:

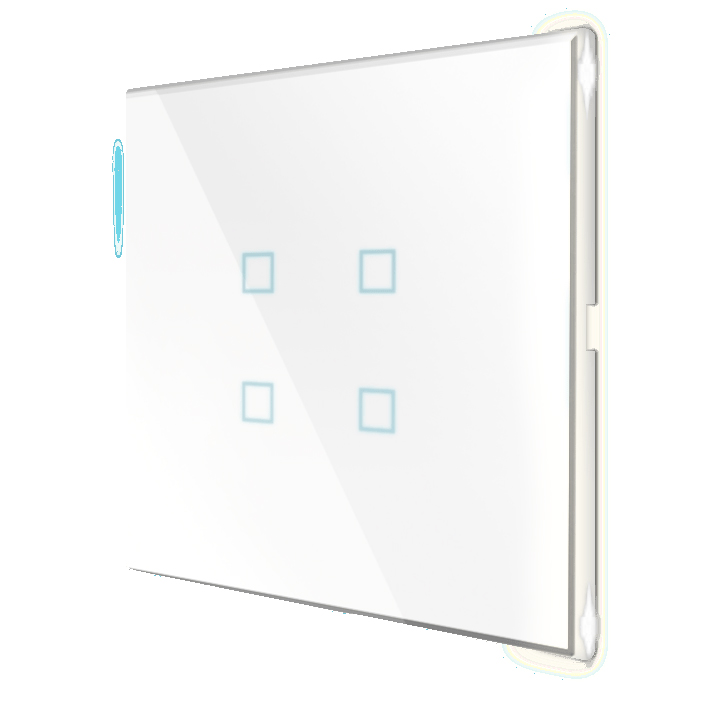

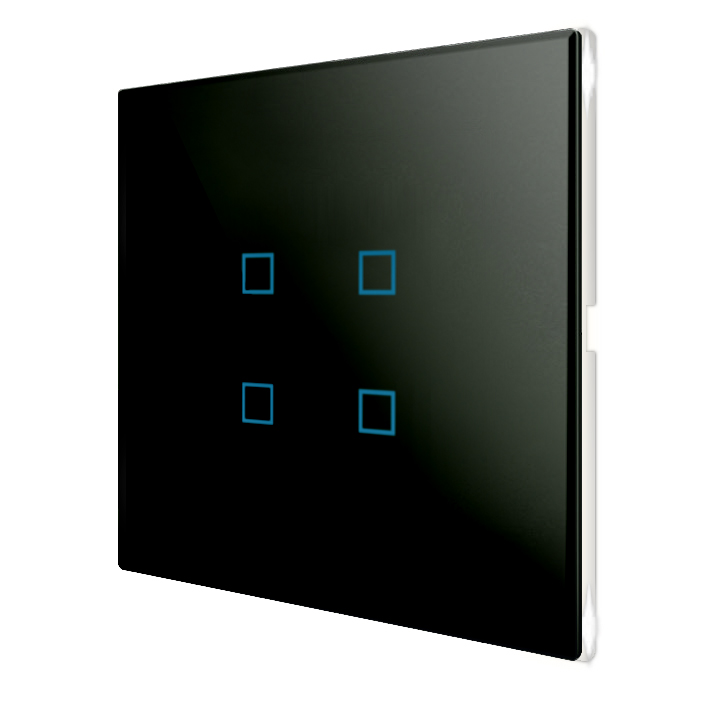

The Vivo® Gemma KNX pushbutton is a capacitive KNX S-Mode device For the on/ioff control of loads, dimmering of luminaires, Motorized drive control or other programmable command and control functions. Integrated temperature and humidity sensor (only in version Plus) allows the use of temperature regulator for an environment or zone. The device is equipped with a built-in KNX bus communication module and is designed for mounting on a wall mounted box. Each channel can be programmed freely to perform 1 or 2 bus functions and his programmable LEDs such as status indication or night light. When a button is pressed, the device sends a telegram to the bus, which is received and executed by one or more KNX actuators depending on the programming performed. The unit is powered by SELV 30 Vdc voltage via the KNX bus and does not require auxiliary power supply.

Characteristics:

· On/off switching of single loads or groups of loads

· Dimming of lighting devices

· Control of motor drives (for roller shutters, blinds or curtains with one or two programmable buttons)

· Room temperature regulation (only GEMMA KNX PLUS)

· Sending temperature and humidity value (only GEMMA KNX PLUS)

· Switching to forced functioning (lock)

· Recalling and saving of scenes

· Different functions programmable for short pressure / long pressure of a rocker

· Status feedback or orientation nightlight through configurable LEDs
