Mero KNX

Description:

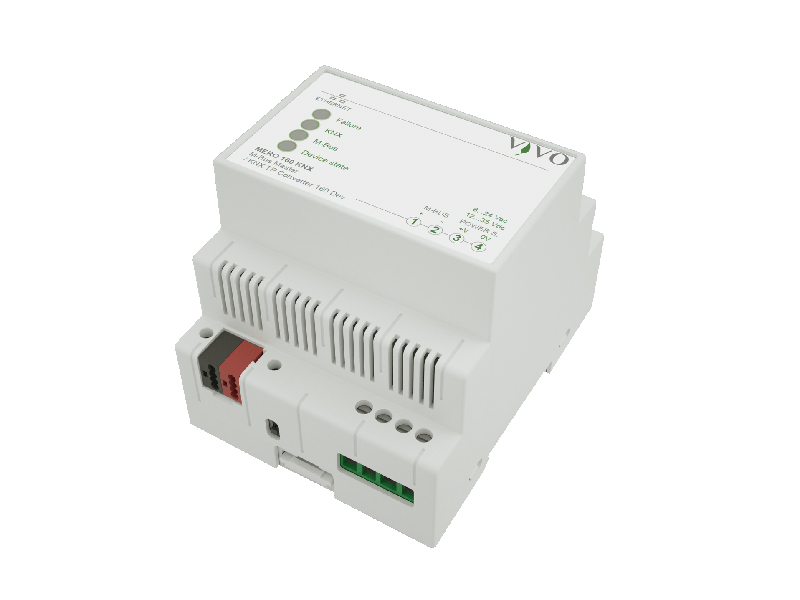

The Vivo M-Bus master EK-BM1-TP gateway is a KNX modular unit for panel mounting. It allows you to exchange informations with one or more slave devices over a serial network through M-Bus protocol. The vivo gateway acts as M-Bus Master. The informations exchanged over the M-Bus network are updated over the KNX network by means of a twisted pair (TP) communication cable. The device manages a two-way data stream: the M-Bus registers can be cyclically read and their value sent as a communication object over the KNX TP network through a multicast communication to configured group addresses. The data update over the KNX network can be done cyclically and/or on event of change of the data acquired by the M-Bus network. Likewise, the vivo gateway can make requests to cyclically readings KNX communication objects or acquire their values during data exchange over the bus. Cyclically or on event of change of the communication objects, data are written on the M-Bus registers of one or more configured devices. The vivo gateway supports the entire M-Bus master protocol. The maximum number of supported slave devices depends on the gateway model. It allows to link to KNX communication objects different measures and variables such as meters, energy totalizers, fow, power, absorbed current and so on. These are the available gateway sizes and models: Mero Knx 20 - up to 20 devices / Mero Knx 40 - up to 40 devices / Mero Knx 80 - up to 80 devices / Mero Knx 160 - up to 160 devices. As for KNX communication, 1bit, 1byte, 2byte and 4byte communication objects can be acquired: internal conversion functions allow you to convert the informations from and to 16bit foating point values (DPT 9.xxx) starting from integer M-Bus registers. Confguration is performed through a PC application software which communicates through the integrated Ethernet port. The application software ets fle is available for download at www.vivoknx.com.

Characteristics:

M-Bus side:

· M-Bus communication port

· Selectable baudrate from 3000 to 38400 baud

· Device addressing from 1 to 250

· Single and multiple register reading/writing

· Single and multiple register reading/writing

KNX side:

· KNX TP (Twisted Pair) communication port set to 9600 baud, electrically isolated from power supply

· 1440-byte volatile support "KNX image" memory buffer

Ethernet port:

· Ethernet communication port (IEEE 802.3), RJ45 connector, minimum cable category: 5E.

MERO KNX 20 DEVICES: K.MER.01G.20N.WO

MERO KNX 40 DEVICES: K.MER.02G.20N.WO

MERO KNX 80 DEVICES: K.MER.03G.20N.WO

MERO KNX 160 DEVICES: K.MER.04G.20N.WO
