Product Code: K.DIM.01G.20N.WO

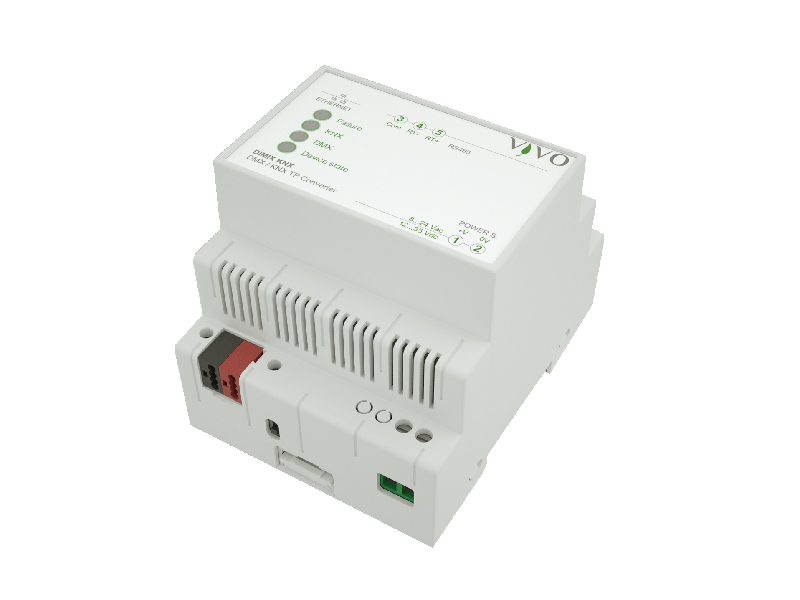

The DMX vivo DIMIX KNX gateway è un apparecchio KNX modulare per montaggio a quadro. is a KNX modular unit for panel mounting. It allows you to exchange informations with one or more slave devices over a RS485 differential serial network through DMX protocol. The vivo gateway acts as DMX master. The informations exchanged over the DMX network are updated over the KNX network by means of a twisted pair (TP) communication cable. The device manges a one-way data stream: up to 12 bytes of KNX data are defined, each one associated with a device over the DMX network. The gateway converts the data coming from KNX master and writes its value on the corresponding DMX device. Configuration is performed through a PC application software which communicates through the integrated Ethernet port. The application software ets file is available for download at www.vivoknx.com.
DMX side:
· RS485 serial communication port, electrically isolated from power supply, 120 O termination resistance insertable by a 1-way microswitch
· DMX master communication
· Baud rate: 250 kbaud
· Device addressing from 0 to 512
· 1-byte register writing on max 512 DMX devices
KNX side:
· KNX TP (Twisted Pair) communication port set to 9600 baud, electrically isolated from power supply
Ethernet port:
· Ethernet communication port (IEEE 802.3), RJ45 connector, minimum cable category: 5E.
DATASHEET EN - IT
