Product Code: K.IRU.01O.20N.EU

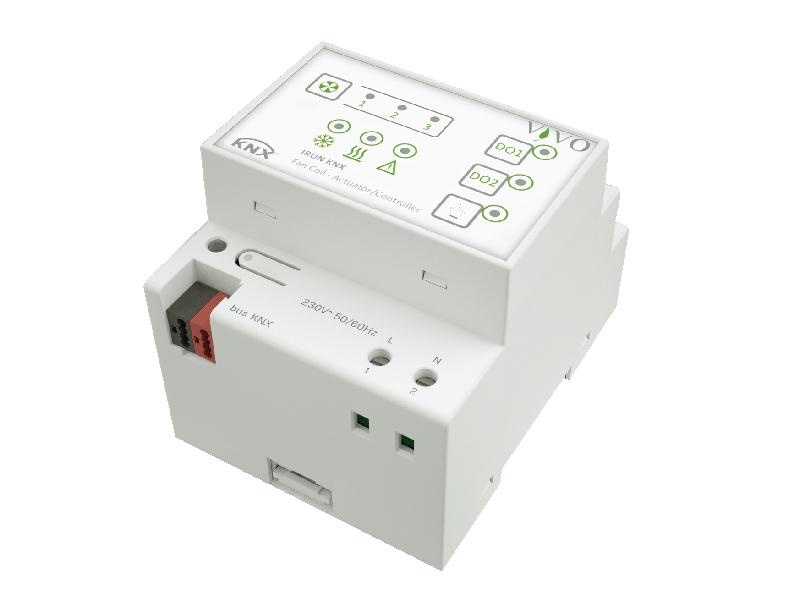

IRUN is a KNX S-mode suitable for controlling air terminals for temperature control applications. The device can be applied to terminals with 2 or 4 pipe system hydraulic distribution, with 1-3 speed discrete speeds or with brushless motor with 0...10 command signal; this version also permits the manual control of the outputs with the membrane pushbuttons. The device can be confgured as an actuator for the command of a fancoil and a maximum of two ON/OFF interception valve on the thermal exchange battery, in combination with a room thermostat installed on the KNX network. the device can also be confgured as regulator / actuator with acquisition of the temperature value from a KNX probe or through a probe installed on the recovery channel and connected to one of the analog inputs.
· Bus power supply + auxiliary power supply at 230 Vac 50/60 Hz
· Control of systems with 2 or 4 pipe hydraulic distribution with ON/OFF type interception valve
· Control of Fancoil with 1-3 discrete speed or a brushless motor with 0...10V signal
· 3 freely confgurable inputs for passive temperature acquisition probes (NTC 10kW ® 25°C) or as binary inputs potential-free
· Manual control by membrane buttons (even in the absence of voltage on the bus)
DATASHEET EN - IT
