Product Code: K.KOC.01G.20N.WO

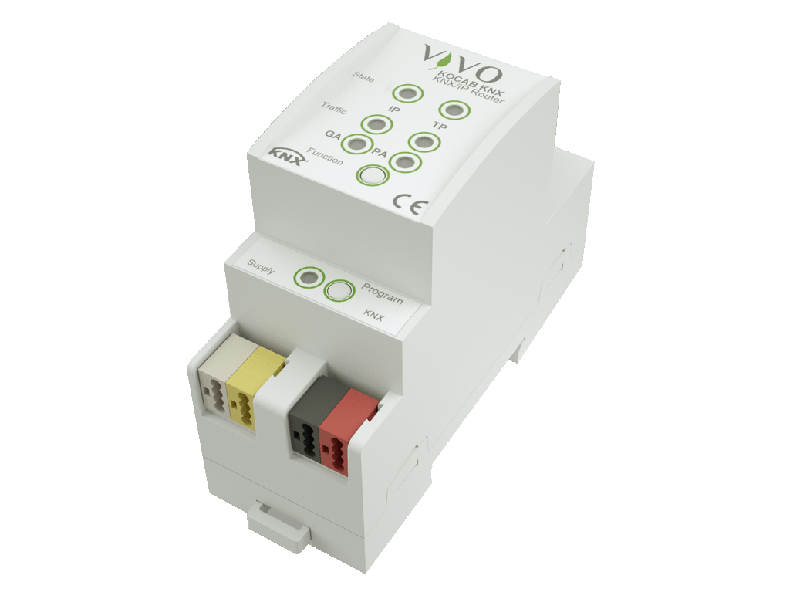

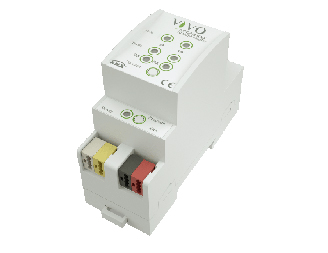

KOCAB KNX is a tunneling and routing device. It can be used as line or backbone coupler and provides a data connection between the upper KNXnet/IP line (main line or backbone) and the lower TP KNX bus line (sub line). The basic functionality of Kocab KNX is coupling the Ethernet with KNX-TP line(s). Kocab provides galvanic isolation between the two connected lines. Due to the fexibility of Kocab, the coupler can be used as a line coupler for example to connect trough Ethernet several TP lines together, as a backbone coupler to connect trough Ethernet several TP areas or to connect different TP installations/systems. The main task of Kocab KNX is fltering the traffc according the installation place in the hierarchy or according to the built-in flter tables for group oriented communication. Kocab KNX can be used together with the ETS as a programming interface. The device provides an additional individual address for this purpose which can be used for a tunneling connection. Kocab can also connect two separate installations/systems. Its possible to check the state or update the device thought a common browser using the device ip and the port : 8080 i.e.: http://192.168.0.8:8080.
· Support of long messages up to 250 byte
· Connection through tunneling protocol available
· Can be favourably used to replace a line coupler
· IACK on own message
· After no response on a message sent, Kocab will send this up to three times again
· Possibility to switch off the flter table with a button
· Programmable automatic switch on of the flter table after Time out
· High internal amount of communication buffers
· UPnP available to discover the device in IP network
· WEB interface operation, thereby frmware update
