Product Code: K.MIN.01O.20N.EU

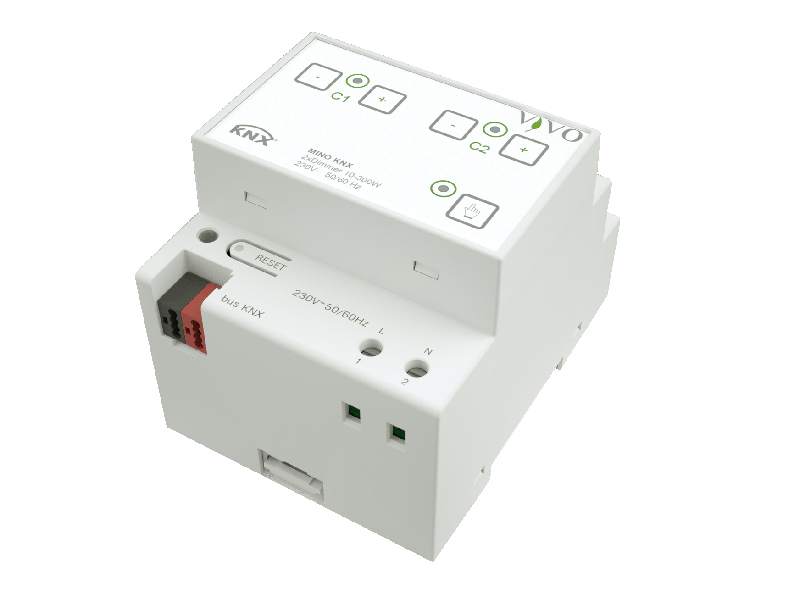

The Vivo dimming actuator MINO KNX is a S-mode KNX rail mounting modular device for independent switching and dimming of 2 groups of lighting devices. The device is equipped with an integrated bus communication module and is designed for rail mounting in distribution boards and cabinets. To operate the device receives a telegram from the bus, sent by a KNX device (such as a pushbutton, a sensor or another switching or control device), that causes the opening or the closing of the corresponding relay or the dimming of the light intensity emitted by the lamp of the connected lighting device. It is possible the manual switching/dimming of an output channel with the membrane pushbuttons on the front of the device. The device is powered by the KNX bus line with SELV voltage 30 Vdc and requires a 230 Vac auxilia-ry power supply.
· ON/OFF switching and dimming of the light intensity of single or groups of lighting devices
· Logical gates and forced mode for each channel
· Manual switching with membrane pushbuttons
· Status feedback of the output channels through LEDs
· Pushbutton for switching between manual and automa- tic operation
· Block function for each channel
· Time programming: delay for switching on and off, stai- rcase lighting function with prewarning signal
· Integration in scenes
· Counter of operating hours confgurable by bus
DATASHEET EN - IT
