Product Code: K.NAO.01O.20N.EU

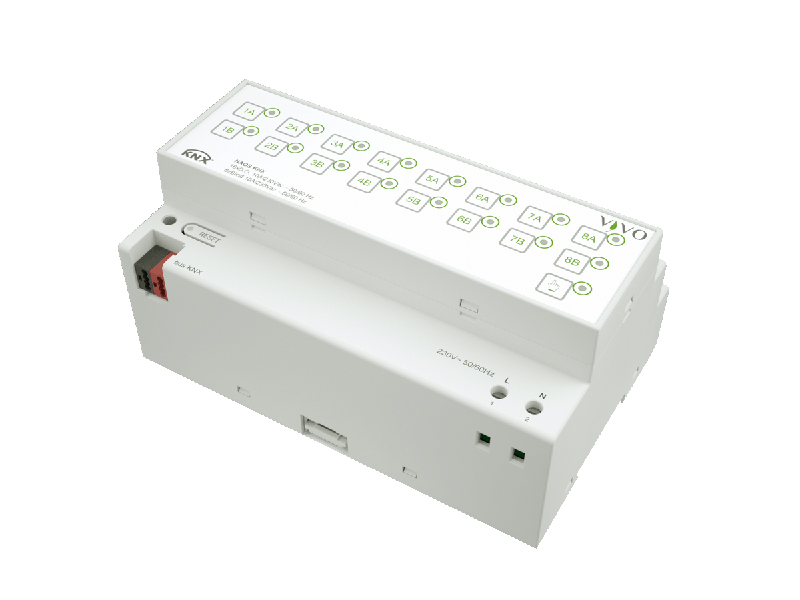

NAOS KNX actuator is a S-mode KNX rail mounting modular device for independent switching electrical loads (single or groups) and controlling 230 Vac motor drives. It has specifc control functions like pump management by valve approval, working time counter (kWh) and up to 8 logic (AND, OR, XOR) custom for each single channel To operate the device receives a telegram from the bus, sent by a KNX device (such as a pushbutton, a sensor or another switching or control device), that causes the opening or the closing of one or more relays. The device requires an auxiliary 230 Vac power supply.
· Manual switching with membrane pushbuttons (also without bus voltage)
· Status feedback of the output channels through LEDs
· Confguration as normally opened or normally closed switch
· Logic gates and forced operation mode (up to 8 logic)
· Status feedback (only at bus operating)
· Locking function for each channel
· Time programming: delay for switching on and off, staircase lighting function with prewarning signal
· Integration in scenes
· Counter of operating hours confgurable by bus (kWh)
DATASHEET EN - IT
