Product Code: K.POL.01E.20N.WO

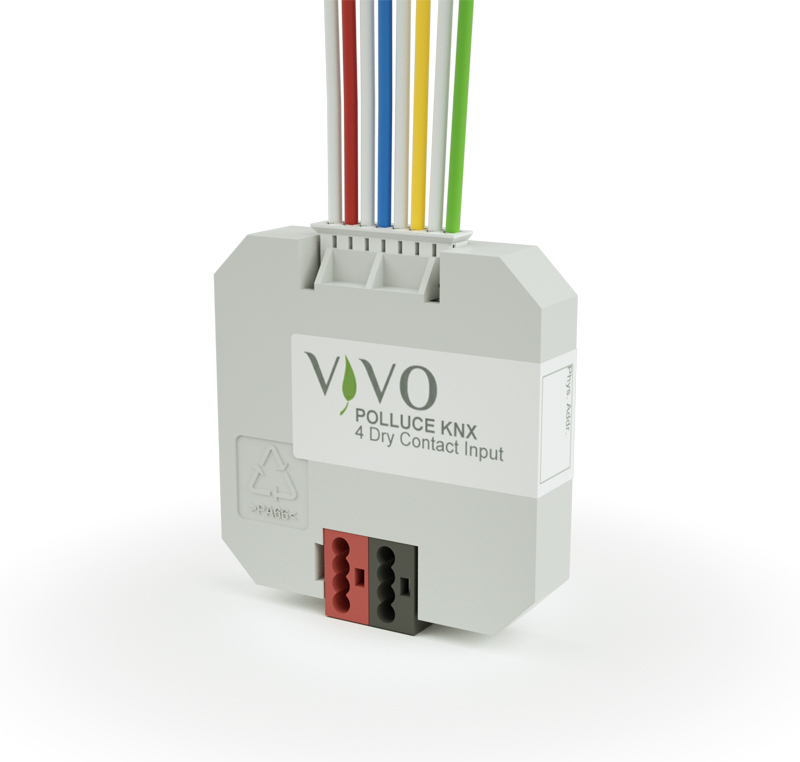

POLLUCE KNX 4x Push Button Interface is a device that enables the usage of classical conventional switches or push buttons or for sensing technical binary signals. It fts together behind a switch in a combined wall and joint box (60 mm diameter, 40 mm deep). It is designed for potential free-foating contacts such as conventional switches and pushbuttons. These foating contacts are connected with four 28 cm long core pairs. The contact scanning voltage is provided by the push button interface. The connection is realized via a cable pairs, which are permanently connected to the push button interface. The connecting twisted pairs cables between switches/push buttons and the push button interface may be extended up to 10m. Commands for the available functions can be given to actuators via the connected switches/push buttons. The application program is selected with the ETS, its parameters and addresses are assigned appropriately and downloaded to the push button interface.
· Switch: Switch on/off, Toggle, Status send and switch short/long.
· Scene: save (long operation after 0,3 to 30 sec) or no save. Scene 1 to 64. 1-Bit Scene: Scene 1 or 2.
· Counter: on rising or falling edge. Types: 8-, 16-, 32-Bit.
· Threshold: Sending difference (1 to 255) write value via KNX
· Send value: percent, on/off, temperature, 2-bit (forced operation), 8-bit, 16-bit send on rising edge, send on both edges, send on short/long and send on long.
· 1 Button Dimming/Shutter: with long operation after 0,3 to 30 sec.
· 2 Button Dimming/Shutter: for two consecutive channels (A/B and C/D) parameterized as pair channels, not single.
· Dimming: brighter/darker or darker/brighter. Shutter: up/down or down/up.
· For all functions: Interlock (enabled or disabled), contact type (normally open or normally closed).
