Product Code: K.REG.01B.20N.WO

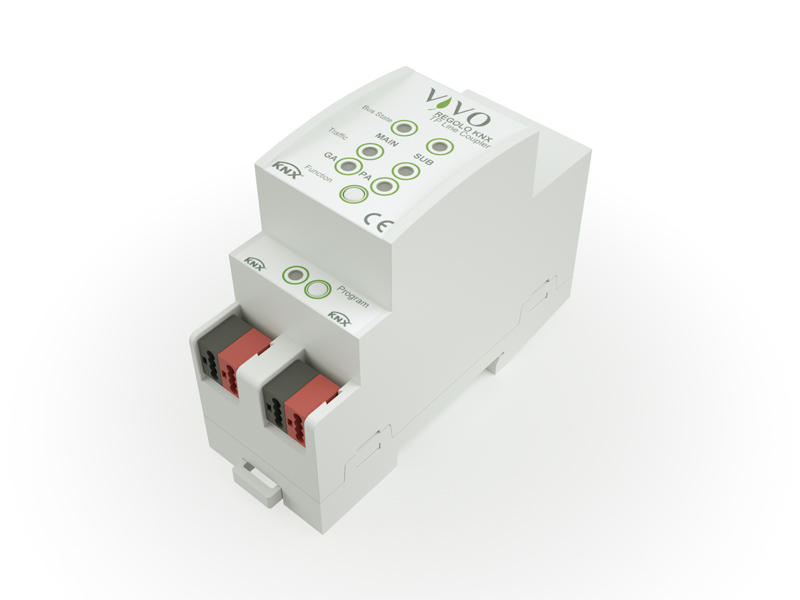

REGOLO KNX line/area coupler allows the coupling of a KNX bus main line with a KNX bus secondary line. The device provides the galvanic isolation between the two connected lines. Thanks to its fexibility, the coupler can be used as a line coupler to connect a secondary line with a main line or as an area coupler to connect a main line with a backbone line. The main task of the device is fltering the traffc according to the installation place in the hierarchy or according to the built-in flter tables for group oriented communication. The device provides support for long messages (up to 250 bytes) and a confgurable pushbutton for the activation of special functions which are helpful during installation, run time operation and troubleshooting. 6 LEDs accurately display the bus status on each line. This helps identifying common communication problems due to bus load or retransmissions on both lines. The device is powered by the KNX bus line with SELV voltage 30 Vdc and does not require any auxiliary power supply.
· Suppress device confguration on the sub line
· Enable or disable filtering of group messages
· Suppress device oriented messages
· Trace of the traffc on the sub line
· Reducing number of retransmissions
· Regolo KNX can be used as a line/backbone coupler or as a line repeater.
